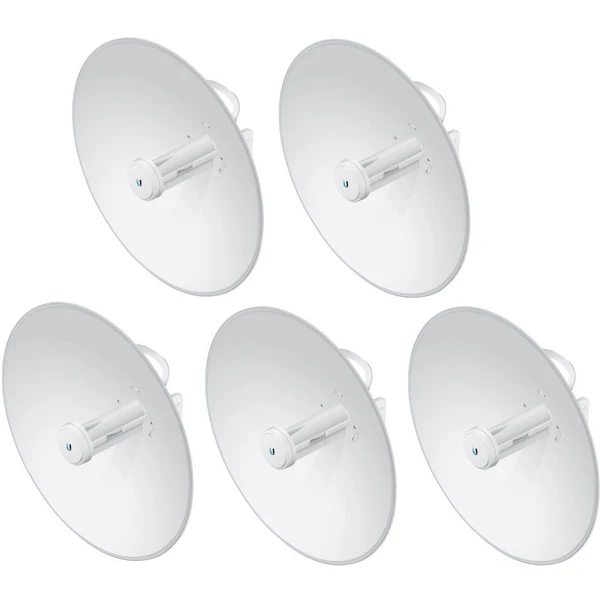

Ubiquiti PowerBeam 5AC vonkajší prístupový bod biely

Základné informácie

• Networking interface (1) 10/100/1000 MbE port
• Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. power consumption 8.5W*
• Power supply 24V, 0.5A Gigabit PoE adaptér (Included)
• Supported voltage range 20-26V DC
• ESD/EMP protection Air/contact: ± 24 kV
• LEDs (1) Power, (1) LAN, (4) WLAN
• RoHS compliance Yes
• Salt fog test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
• Vibration test IEC 68-2-6
• Temperature shock test IEC 68-2-14
• UV test IEC 68-2-5 at 40 ° C (104 ° F), Equivalent: ETS 300 019-1-4
• Wind-driven rain test ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
• Operating temperature -40 to 70 C (-40 to 158 F)
• Operating humidity 5 to 95% noncondensing
• Certifications CE, FCC, IC

System

• Gain 25 dBi
• Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz, PtMP Mode: 10/20/30/40 MHz
• Operating Frequency (MHz)
• Worldwide 5150-5875 MHz
• USA
• U-NII-1 5150-5250 MHz
• U-NII-2A 5250-5350 MHz
• U-NII-2C 5240-5725 MHz
• U-NII-3 5725-5850 MHz
• Management Radio (MHz)
• Worldwide 2412 - 2472 MHz
• US/CA 2412 - 2462 MHz
